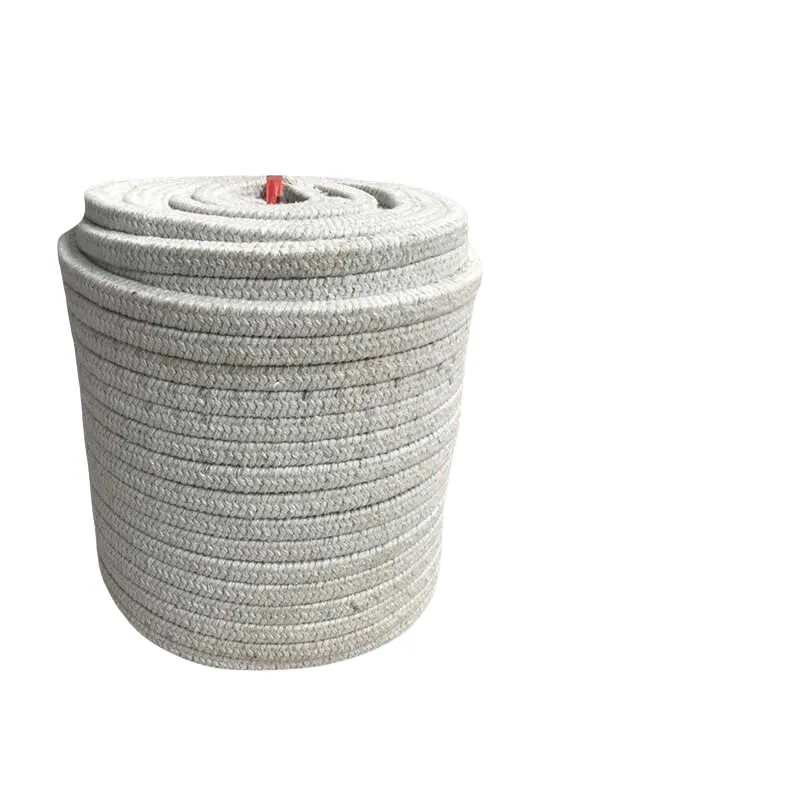

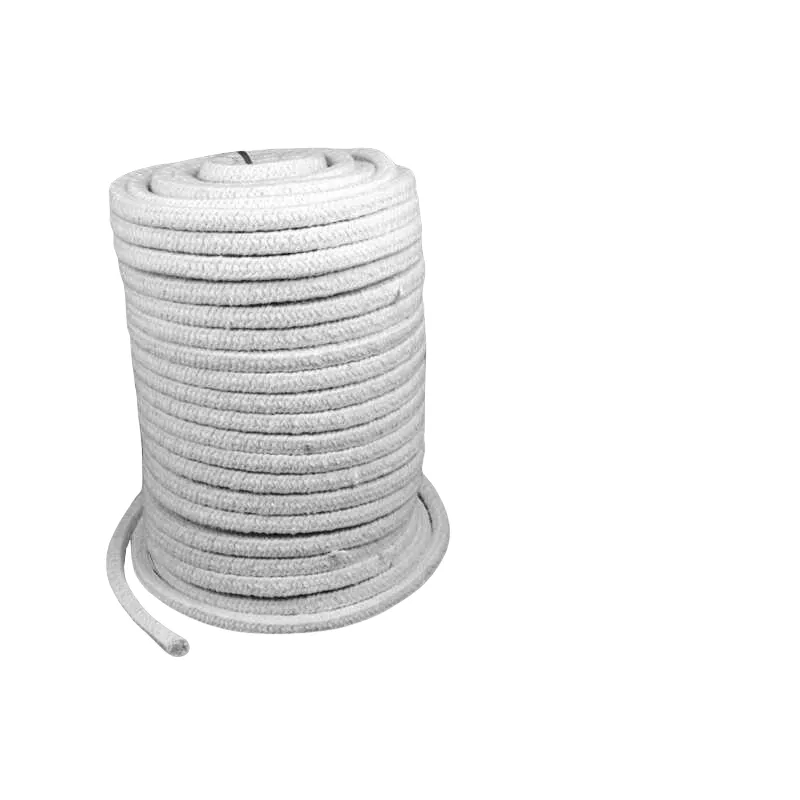

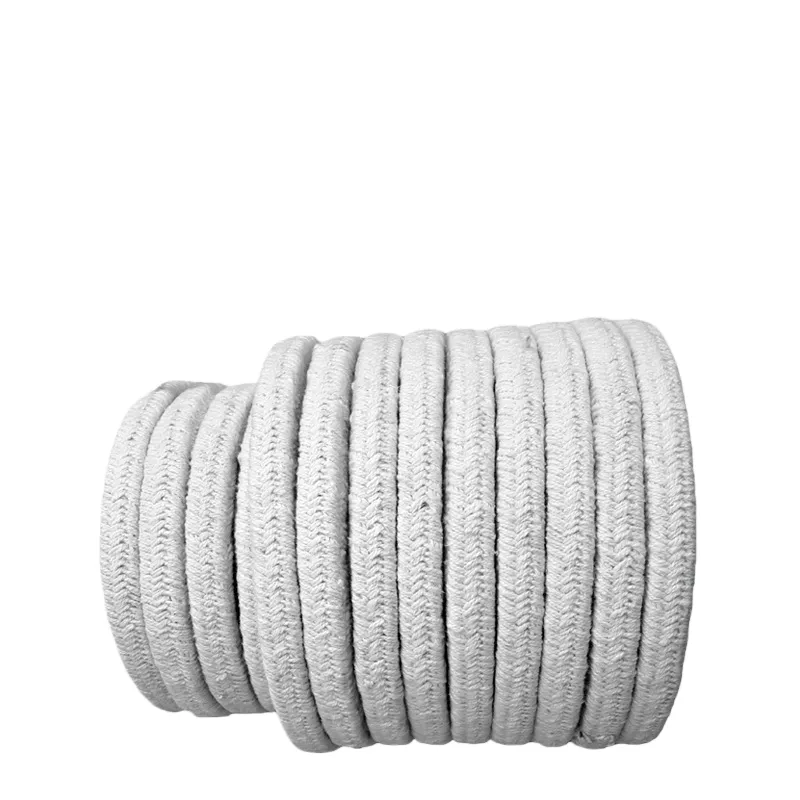

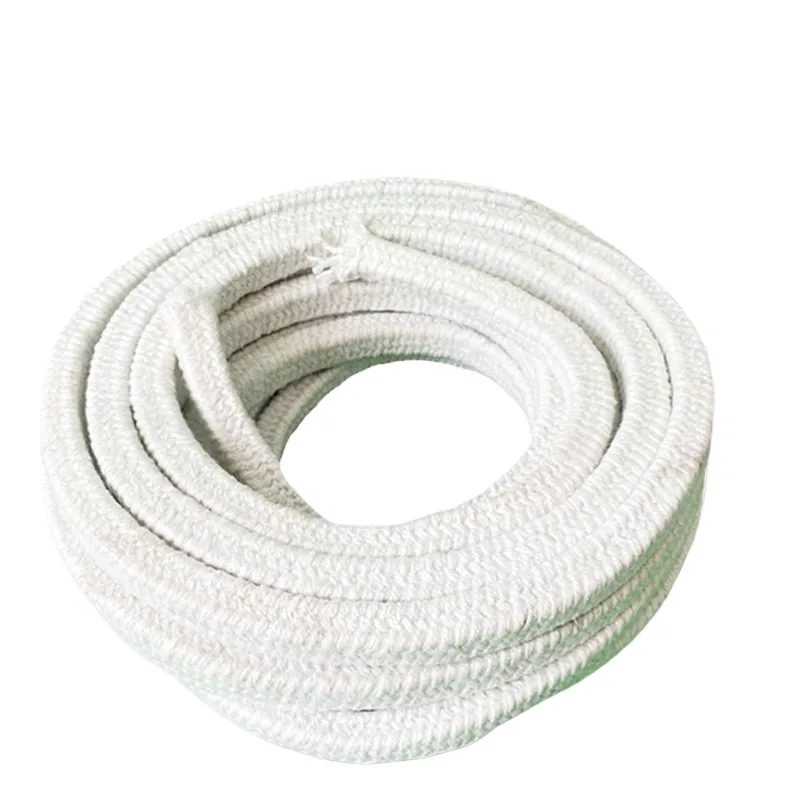

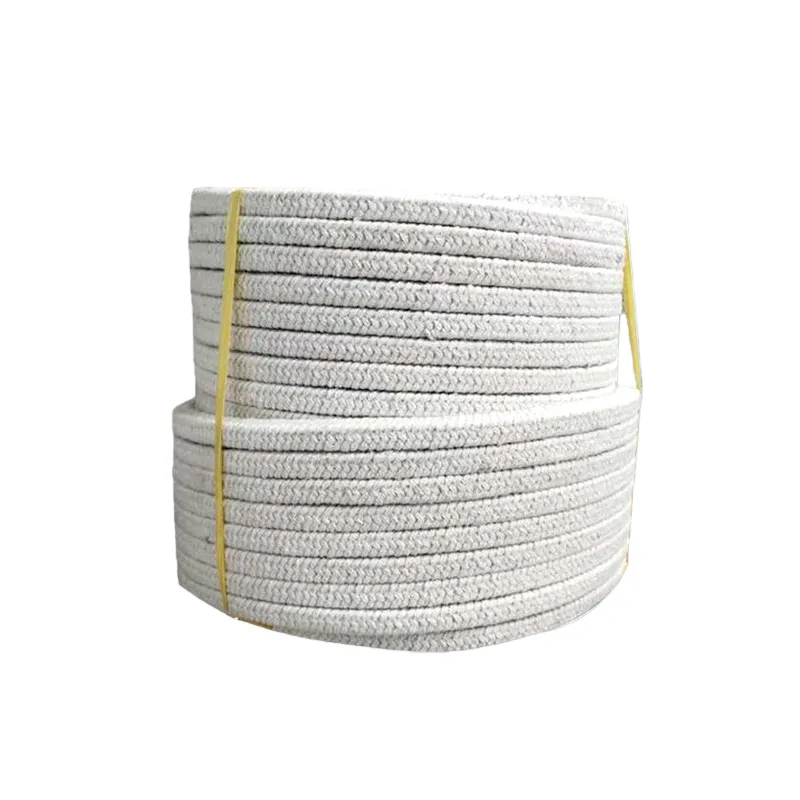

Ceramic fiber packing: The "flexible armor" of high-temperature dynamic sealing and material

In extreme operating conditions of petrochemicals, electric power, metallurgy, and high-end equipment manufacturing, when the medium 800°C, pressure surpasses 20MPa, and is accompanied by strong corrosion and frequent start-stops, traditional graphite or synthetic fiber packing often fails rapidly to oxidation, creep, or thermal degradation. Ceramic Fiber Packing, as a flexible sealing element based on high-purity alumina-silica continuous fibers, has established an irreplaceable engineering status the field of high-temperature dynamic sealing with its unique "microcrystalline network" structure and "stress-adaptive" mechanism. It is not only a physical barrier for the shaft seals equipment such as pumps, valves, and agitators, but also a concentrated embodiment of the "softness overcoming hardness, high-temperature adaptation" design philosophy in the industrial sealing field. Understanding fiber packing is essentially understanding how to achieve a fundamental improvement in sealing reliability and equipment lifespan through the synergy of material science and weaving processes under extreme thermodynamic and chemical environments. Material: The Birth of the Microcrystalline Network and "Stress Adaptation" The core value of ceramic fiber packing stems from its flexible woven structure and intrinsic material properties, which distinguish it from traditional seals. It is not a rigid ring molded from ceramic powder, but a composite fiber of high-purity alumina (Al₂O₃ content 45%-52%) silica (SiO₂) that forms a microcrystalline network structure after gradient sintering at 1200°C. This structure ensures rigid support at high temperatures while retaining moderate toughness, it to maintain its original cross-sectional density under continuous operating conditions of 650°C, thereby avoiding the risk of fragmentation caused by brittleness in traditional ceramic packing.More critically, the sealing mechanism of ceramic fiber packing lies in "stress adaptation." Under pressure, the fiber bundles undergo controllable buckling to fill irregular gaps; after pressure release, they recover 65% of their initial height thanks to residual elasticity. This characteristic makes it particularly suitable for operating conditions with frequent start-stops and large fluctuations in medium pressure. For, in the feed pump of a vacuum distillation tower in a refinery, where the medium contains trace amounts of coke powder and the pressure jumps between 0.8 and 2.3, the use of ceramic fiber packing with a 32° twill weave improves its radial extrusion resistance by 31% compared to the conventional 45° structure, the axial friction coefficient by 0.18 units, and extends the average replacement cycle from 47 days to 132 days. This "flexible armor"-like sealing logic overturns the traditional packing design orientation of "tighter is denser," avoiding damage to the shaft sleeve caused by excessive tightening

Performance Boundaries: A Dialectical Understanding of Advantages and Limitations The performance advantages of ceramic fiber packing are particularly prominent under extreme dynamic sealing. Its temperature resistance range covers 800°C to 1260°C (up to 1350°C for zirconia-type), far that of graphite packing (≤500°C) and synthetic fiber packing (≤300°C); it exhibits excellent chemical stability, capable of withstanding acids,alis, salts, oils, and hydrocarbon media with a pH range of 3-14, and is asbestos-free, complying with environmental regulations; meanwhile, its low thermal (<0.18W/m·K@1000°C) effectively reduces heat loss, protects the sealing end, and improves overall equipment efficiency. In the air duct of a biomass boiler, where airflow carries hard ash particles (Mohs hardness 6.5) at a velocity of 28m/s, ordinary graphite packing through in 3 weeks, whereas ceramic fiber packing can operate stably for 11 months without leakage. However, its limitations also require engineers to maintain a clear understanding. First, fiber packing is a contact seal, placing high requirements on the surface roughness and hardness of the shaft; if the shaft surface has scratches or insufficient hardness, it can easily lead to rapid and failure of the packing. Second, its performance is highly dependent on installation techniques and lubrication conditions; uneven gland pre-tightening force or insufficient lubrication can cause excessive leakage or overheating and burning., despite its excellent corrosion resistance, it still requires cautious selection in strongly oxidizing media (such as concentrated nitric acid and concentrated sulfuric acid). Furthermore, the procurement cost of ceramic fiber packing higher than that of traditional packing, and strict control over the cut angle and pre-tightening force is required during installation to avoid early failure caused by process deviations

Structural Innovation: From Standard to Enhanced Models for Working Condition Adaptation To break through the performance boundaries of standard ceramic fiber packing, the industry developed various enhanced products, achieving an iteration from "single high-temperature resistance" to "comprehensive performance balance". Glass fiber-reinforced ceramic fiber packing, by adding alkali-free glass filaments improves high-temperature insulation performance and service life, making it suitable for conventional high-temperature working conditions below 650°C; stainless steel wire-reinforced models, enhanced with-resistant alloy wires, significantly improve tensile strength and wear resistance, making them suitable for high-pressure, high-linear-velocity scenarios above 1000°C. , the specifications and customization capabilities of ceramic fiber packing are also continuously being optimized. Product cross-sectional dimensions can range from 5×5mm to 200×200, and lengths can be customized according to customer needs to meet different stuffing box sizes and installation requirements. Some manufacturers also provide special specification options such as zirconia-containing and nano-modified types, and support customized development for-standard stuffing boxes, special media, or extreme working conditions, such as adjusting fiber diameter tolerances (±0.5μm), optimizing braiding density (18±1 strands/cm² and impregnation liquid viscosity (280±15mPa·s), enabling ceramic fiber packing to precisely match various complex working conditions and avoid losses and failures caused by material mismatch

Standards and Selection: Technical Red Lines for Operating Condition Adaptation The selection of ceramic fiber packing must strictly follow the five-dimensional matching principle of "-temperature-pressure-shaft speed-lubrication". For conventional high-temperature steam and boiler door sealing conditions, standard ceramic fiber packing with a temperature resistance of ≤1000C should be prioritized; for chemical acid and alkali medium pump shaft seals, glass fiber reinforced types must be selected to enhance corrosion resistance; for high-temperature air inlets of metallurgical equipment and-pressure pump/valve seals, stainless steel wire reinforced or zirconium-containing types should be selected, with temperature resistance up to 1350°C and pressure resistance above20MPa. When selecting, special attention must be paid to the following technical red lines: First, the upper temperature limit, where the safe operating temperature of standard ceramic fiber packing is1000°C and zirconium-containing type is 1350°C; exceeding this temperature will lead to fiber softening and seal failure; second, the pressure, as ceramic fiber packing is suitable for 3-20MPa operating conditions, while ultra-high pressure scenarios require reinforced or composite seals; third, shaft speed adaptation, where the linear speed ceramic fiber packing is usually ≤12m/s, and excessive speed will cause excessive frictional heat and seal failure; fourth, lubrication conditions, as ceramic fiber packing is not suitable for longterm dry running and requires a lubricated environment to extend its service life; fifth, the cut form, where packing rings must be inserted into the stuffing box one by one during installation and the cut angle must be controlled between 30°-45° to avoid acute angles above 60° that cause fiber bundle shear failure

Installation and Maintenance: Critical Control Points in Engineering Practice The sealing reliability of ceramic fiber packing depends not only on the quality of the product itself but more importantly on the refined control of installation and maintenance. Before installation, the stuffing box and shaft surface must be thoroughly cleaned to remove oil, rust, scratches, and old packing residue, ensuring the contact surfaces are clean and flat; meanwhile, the shaft diameter and stuffing box dimensions must be measured to accurately calculate the cross-sectional size and length of the packing rings, avoiding sealing failure caused by dimensional deviations. When cutting the packing rings, a dedicated cutting jig must be used in conjunction with an infrared positioning system to ensure the cut angle error is ≤2°, preventing the fiber bundles from being sheared rather than sliding. During installation, the packing rings must be placed into the stuffing box one by one, with the cut of each ring offset by more than 90° to avoid leakage caused by aligned cuts. After installing each ring, a compaction tool must be used to press it firmly, ensuring the packing ring fits perfectly against the stuffing box wall and the shaft surface. Once installation is complete, the gland nuts must be tightened gradually, with the preload controlled based on the "finger press rebound time" criterion: a qualified state is defined as a recovery time of 3.5-4.2 seconds after applying thumb pressure for 2 seconds, avoiding over-tightening that could cause the packing rings to overheat and burn. After starting the equipment, a slight leakage of the packing rings must be allowed to lubricate the shaft surface and carry away frictional heat; the gland nuts should be gradually adjusted within 1 hour of operation to reduce the leakage to the minimum allowable value, ensuring no heat generation at the stuffing box. In the maintenance phase, a usage log for the packing rings must be established to record installation time, operating parameters, leakage amount, and maintenance status, providing data support for subsequent selection and installation. The leakage amount and stuffing box temperature of the packing rings must be checked regularly; if the leakage is excessive or the temperature is too high, the gland nuts must be adjusted or the packing rings replaced promptly. For reusable packing rings, an appearance inspection and dimensional measurement must be performed after disassembly; if the surface of the packing ring shows wear, deformation, or aging, it must be repaired or replaced; if the packing ring exhibits delamination or loosening, it must be replaced with a new one to avoid sealing performance degradation caused by reuse.

Conclusion: The Engineering Rationality Behind Flexible Sealing The widespread application of ceramic fiber packing reflects a paradigm shift in industrial sealing technology fromrigid pre-tightening" to "flexible self-adaptation." It retains the "rigid" advantages of ceramic materials, such as high temperature resistance, corrosion resistance, and low thermal, while achieving a "softness overcoming hardness" sealing effect through its flexible braided structure and stress self-adaptation mechanism, providing a durable and reliable sealing guarantee under extreme dynamic sealing conditions. The of this flexible sealing enable it to play an irreplaceable role across a broad spectrum of scenarios, ranging from conventional high temperatures to ultra-high temperatures, and from corrosive media to frequent startstop operations. With the continuous explosion of emerging industries such as new energy, supercritical power generation, and deep-sea oil and gas extraction, the performance requirements for ceramic fiber packing are steadily climbing. In the future, higher temperature resistance, stronger corrosion resistance, greater intelligence, and more customization will become the main directions for the development of ceramic fiber packing technology. engineers and material researchers, deeply understanding the material essence, performance boundaries, and installation logic of ceramic fiber packing not only helps in making better selection decisions for current projects but also reserves critical knowledge to tackle more severe sealing challenges in the future. Within this seemingly ordinary white braided material lies the engineering rationality and scientific spirit driving the continuous advancement of industrial sealing technology
