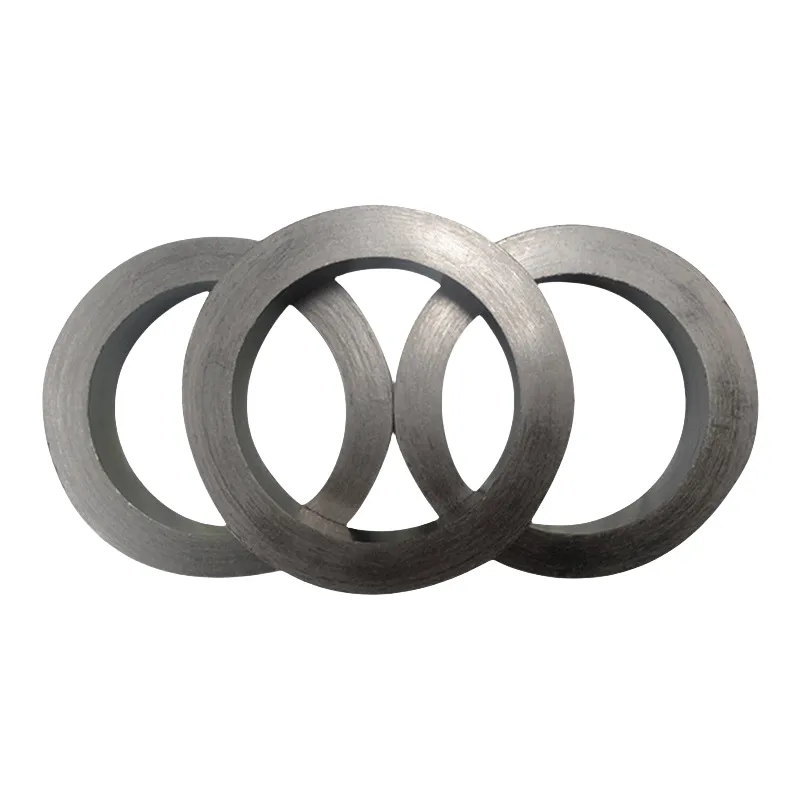

Graphite self-sealing ring: The "adaptive" philosophy and engineering boundaries of high-pressure

In extreme operating conditions of petrochemicals, energy power, and heavy machinery, when flange connections face severe alternating temperatures,-high pressures up to 800 bar, and highly corrosive media, traditional bolt-preloaded seals often fail due to stress relaxation or flange deformation. As a pure graphite sealing based on intrinsic material properties, the Graphite Self-Sealing Ring has established an irreplaceable engineering position in the field of high-pressure static sealing with its unique "pressure self-tightening" and "adhesive-free" structure. It is not only a physical barrier at the connections of valves, pumps, and pressure vessels, but also a concentrated embodiment of the "overcoming rigidity flexibility, adaptive sealing" design philosophy in the industrial sealing field. Understanding the graphite self-sealing ring is essentially understanding how to achieve a fundamental improvement in sealing reliability under extreme operating through the synergy of material science and structural design. Material Essence: The "Boundless" Sealing of Low-Sulfur Expanded Graphite The core value of the graphite self-aling ring stems from its pure graphite structure made of low-sulfur expanded graphite through compression molding. This material contains no external fillers or adhesives, with a graphite purity exceeding 9%, fundamentally avoiding stress corrosion or performance degradation induced by impurities under high temperature and high pressure. Its microscopic layered structure endows the material with excellent self-lubricating properties, resilience, and chemical inertness, allowing it to serve stably within a wide temperature range from -220°C to  550°C (up to  280°C in non-oxidizing atmospheres), and exhibit extremely strong resistance to most acids, bases, solvents, oils, and steam media with a pH value of 0-4. More critically, the "self-sealing" characteristic of the graphite self-sealing ring does not rely on external bolt preloading force, but is driven by medium pressure. When the system pressure increases, the medium pressure acts on the inner cavity of the sealing ring, causing it to tend to expand radially, forming an adaptive sealing effect with the sealing surface where "the higher the pressure, the tighter the seal." This mechanism effectively overcomes the stress relaxation problem of traditional seals under pressure fluctuations, while avoiding off-center loading caused by uneven bolt preloading force. Its cross-sectional forms are usually square, wedge, or V-shaped, among which the wedge and V-shaped cross-sections are specifically for high-pressure parts, further enhancing the reliability of the self-tightening seal through geometric structure optimization.

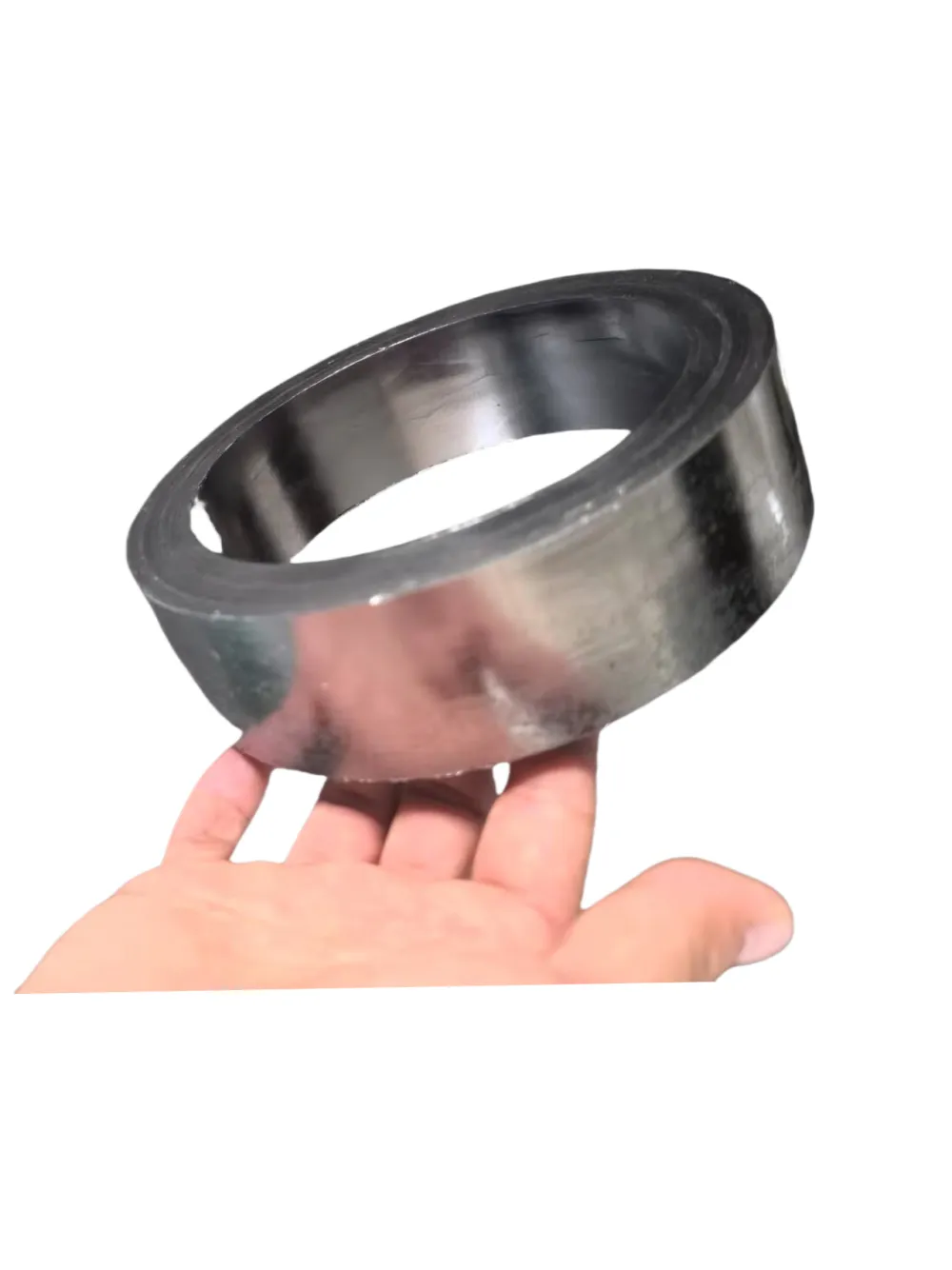

Performance Boundaries: A Dialectical Understanding of Advantages and Limitations The performance advantages of graphite self-sealing rings are particularly under extreme static sealing conditions. Their temperature and pressure resistance far exceed that of traditional non-metallic gaskets, maintaining a stable seal even at 800 bar ultra-high pressure 550°C high temperature, and in strongly corrosive media; their adhesive-free structure prevents hardening and aging at high temperatures, with a service life far exceeding that of or PTFE-based seals; meanwhile, their self-lubricating properties effectively reduce wear on the sealing surface and prevent damage to the flange face, performing excellently in frequently disassembled operating conditions In scenarios such as high-temperature and high-pressure steam valves in power plants, high-pressure chemical reaction vessels, and oil and gas wellhead devices, the sealing life of graphite-sealing rings can reach several years or even decades, significantly reducing equipment maintenance costs and the risk of unplanned shutdowns. However, their limitations also require engineers to maintain a understanding. First, graphite self-sealing rings are only suitable for static sealing scenarios; in dynamic sealing (such as rotating shafts or reciprocating rods), they are prone to extrusion or wear failure to a lack of sufficient support and guidance; second, their performance highly depends on graphite purity and compression molding processes, with inferior products easily suffering from issues like uneven density and insufficient rebound and they have high requirements for the flatness of the flange sealing surface; if the flange has warping or scratches, leakage is highly likely; furthermore, although graphite has excellent corrosion resistance, it still undergo oxidative corrosion in strongly oxidizing media (such as concentrated nitric acid and concentrated sulfuric acid), and its use in such conditions should be avoided; in addition, the procurement cost of self-sealing rings is higher than that of ordinary non-metallic gaskets, and the compression amount must be strictly controlled during installation, as excessive compression will lead to a loss of elasticity insufficient compression will fail to form an effective seal.

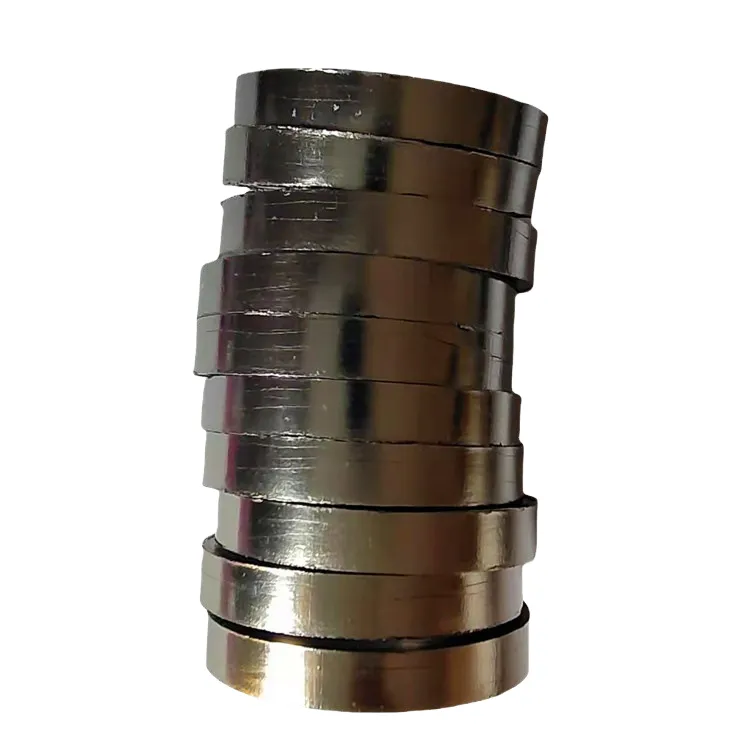

Structural Innovation: From Pure Graphite to Reinforced Composites for Working Condition Adaptation To break through the performance boundaries of pure self-sealing rings, the industry has developed reinforced graphite self-sealing rings, achieving a "rigid-flexible combination" sealing effect through a metal skeleton lining. The reinforcing materials metals such as stainless steel foil, stainless steel mesh, or nickel-platinum, which are molded with pure flexible graphite to significantly enhance the compressive strength and extrusion resistance of the sealing ring In working conditions with higher pressure and temperature, a design with metal sheet cladding on the upper and lower surfaces is often adopted to further enhance the ring's abrasion resistance, enabling it adapt to more severe working condition requirements. Meanwhile, the cut forms of graphite self-sealing rings have also been finely designed according to working condition needs. Molded rings can be divided into rings and non-cut rings, with the latter further divided into straight-cut and bevel-cut rings. Bevel cuts (usually 45° or 30°) effectively prevent media leakage at the cut, performing better in high-pressure working conditions; non-cut rings are suitable for scenarios with extremely high requirements for sealing integrity, but are more to install. In addition, graphite self-sealing rings can be combined with high-carbon fiber packing end rings to form a "graphite ring   packing" composite sealing structure, effectively packing extrusion and demonstrating unique advantages in valve packing gland sealing. Standards and Selection: The Technical Red Lines for Working Condition Adaptation The selection of graphite self-sealing rings must strictly the four-dimensional matching principle of "media-temperature-pressure-sealing form". For conventional high-pressure static sealing working conditions, pure graphite self-sealing rings are, with density controlled at 1.2-1.75g/cm³ (generally 1.6g/cm³) and cross-sectional forms selected as square or based on the pressure rating; for ultra-high pressure and large temperature fluctuation working conditions, reinforced graphite self-sealing rings lined with stainless steel mesh or foil must be selected to compressive and extrusion resistance; for strongly oxidizing media working conditions, the use of graphite self-sealing rings should be avoided, and alternative solutions such as metal-wound gaskets or PTFEenveloped gaskets should be used instead. When selecting, special attention must be paid to the following technical red lines: First, the upper temperature limit, where the maximum operating temperature of graphite self-sealing rings in an oxidizing atmosphere is 550°C, exceeding this temperature will lead to oxidative corrosion; second, the pressure limit, where pure graphite self-aling rings are suitable for static sealing working conditions of ≤800 bar, and ultra-high pressure scenarios require the selection of reinforced or metal seals; third, media compatibility, although graphite has corrosion resistance, its use in strongly oxidizing media should still be avoided; fourth, flange adaptability, graphite self-sealing rings have high requirements for the flatness of the flange sealing, with roughness controlled within Ra3.2μm, and the compression amount must meet design requirements during installation to avoid over-compression or under-compression

Installation and Maintenance: Critical Control Points in Engineering Practice The sealing reliability of graphite self-sealing rings depends not only on the quality of the itself but more importantly on the refined control of installation and maintenance. Before installation, the flange sealing surface and the surface of the sealing ring must be thoroughly cleaned to remove oil, rust, and old seal residues, ensuring the contact surfaces are clean and flat; meanwhile, the flatness of the flange surface and the alignment of the bolt holes must be checked, and if defects exist the flange must be repaired or replaced. During installation, the sealing ring must be accurately placed within the flange sealing surface, avoiding tilting or warping, to ensure the sealing ring fits perfectly with the flange surface when tightening the bolts, a diagonal cross-pattern and step-by-step incremental method must be used, gradually reaching the specified torque in 3-4 stages, with the uniformity of flange gap checked after each tightening to ensure the sealing ring is evenly loaded and to avoid deformation due to uneven loading. In the maintenance phase, a usage log for the sealing ring be established to record the installation time, operating parameters, tightening torque, and leakage conditions, providing data support for subsequent selection and installation. For reusable graphite self-sealing rings, an appearance inspection and dimensional measurement must be performed after disassembly; if scratches, deformation, or oxidation/corrosion are found on the surface of the sealing ring, it must be repaired or replaced; if such as delamination or loosening occur, a new sealing ring must be installed to avoid sealing performance degradation caused by repeated use. Meanwhile, the bolt preload of the flange system must be checked regularly; bolt loosening or an increased flange gap is detected, it must be retightened promptly to prevent leakage caused by insufficient preload.

Conclusion: The Engineering Rationality Behind Adaptive Sealing The widespread application of graphite self-sealing rings reflects a paradigm shift in industrial technology from "passive pre-tightening" to "active adaptation." It retains the "flexible" advantages of graphite materials, such as high-temperature resistance, high-pressure resistance, corrosion resistance, while achieving a "softness overcoming hardness" sealing effect through a pressure self-tightening mechanism, providing a durable and reliable sealing guarantee under extreme static sealing conditions. adaptive sealing characteristic enables it to play an irreplaceable role across a broad spectrum of scenarios, ranging from conventional high pressure to ultra-high pressure, and from high temperature to ultra-high With the continuous explosion of emerging industries such as new energy, deep-sea oil and gas extraction, and supercritical power generation, the performance requirements for graphite self-sealing rings constantly climbing. In the future, higher temperature resistance, stronger corrosion resistance, greater intelligence, and more customization will become the main directions for the technological development of graphite self-sealing rings. engineers and material researchers, deeply understanding the material essence, performance boundaries, and selection logic of graphite self-sealing rings not only helps in making better selection decisions for current projects also reserves critical technical knowledge to cope with more severe sealing challenges in the future. Within these seemingly ordinary black graphite rings lies the engineering rationality and scientific spirit of the continuous progress of industrial technology.
