The optimal solution for sealing the forming of high-temperature and high-pressure valve stems

In industrial dynamic and stuffing box sealing applications, conventional packing is cumbersome to install, difficult to tighten, prone to shaft wear, and has a high leakage, while traditional gaskets cannot accommodate the reciprocating and rotating movements of the shaft. As a prefabricated integral sealing packing, the graphite packing ring (flexible graphite molded packing ring) perfectly solves many points of traditional bulk packing, making it the mainstream sealing component for valve stems, pump shafts, and compressor stuffing boxes under high-temperature and high-pressure operating conditions. Compared bulk graphite packing, graphite packing rings feature precise dimensions, high resilience, stable sealing, and easy installation. They effectively reduce equipment wear, minimize medium leakage, and extend maintenance cycles, making widely used in demanding industrial scenarios such as power, chemical, petrochemical, and thermal industries. Today's practical guide will comprehensively cover the performance, classification, selection, installation, and usage precautions graphite packing rings.

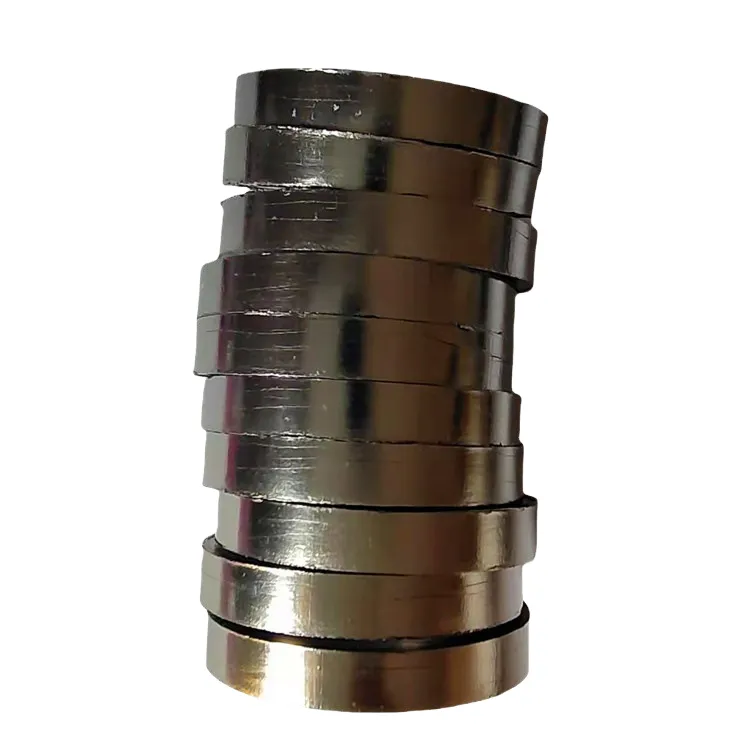

I. What is a Graphite Packing Ring? The full name of the graphite packing ring is the flexible compression packing ring. It is made from high-purity expanded graphite raw material (purity ≥98%), without glue or fillers, and is an annular sealing component formed through-pressure compression molding. Some models feature embedded metal wire mesh or metal sheet reinforcement structures to adapt to higher pressure working conditions. The core application scenario is packing box sealing, specifically for the dynamic and micro-static sealing of valve stems, pump shafts, agitator shafts, and rotating equipment. Unlike flange gaskets used for flat sealing, it focuses on axial circumferential, dynamic compensation, wear resistance, and vibration resistance. Common cross-sections are standard square, with customizable wedge, V-type, and 45° bevelled styles adapt to high-pressure, high-speed, and high-precision equipment working conditions.

II. Core Performance Advantages of Graphite Packing Rings Graphite packing rings are gradually replacing traditional packing to become the standard for industrial packing boxes, primarily due to six irreplaceable core performance advantages: 1. Ultra-wide temperature range, resistant to high and low temperature shocks stably withstands temperatures from -200°C to 850°C (non-oxidizing media) under normal working conditions, with instantaneous high temperatures reaching 800°C. In oxidizing environments, it can withstand temperatures up to 450°C. It does not crack at low temperatures or carbonize at high temperatures ensuring no failure and perfectly adapting to extreme temperature conditions such as steam, high-temperature hot oil, and cryogenic media. 2. High pressure resistance, extremely strong sealing stability pure graphite packing rings can withstand pressures up to 35MPa, while metal-reinforced models can withstand up to 45MPa, making them suitable for high-pressure steam, high-pressure fluids, and working conditions with frequent pressure fluctuations. The product has a uniform density and compact structure, offering excellent rebound compensation after compression. It can continuously fit the surface, eliminating leaks caused by pressure fluctuations. 3. Universal corrosion resistance, adaptable to various media High-purity flexible graphite has stable chemical properties, making it suitable for 0-14 acid and alkaline media. It can withstand steam, hot water, hot oil, oil products, organic solvents, and weakly to strongly corrosive fluids without swelling,ding, or aging, and it will not cause secondary contamination to the media. 4. Built-in self-lubrication, shaft protection and wear reduction The graphite has excellent self-lubricating properties with an extremely low friction coefficient. It will not scratch the valve stem or pump shaft during equipment operation, significantly reducing shaft wear. Simultaneously, reduces equipment operating resistance and energy consumption, completely solving the common problems of dry friction and shaft damage associated with ordinary packing. 5. One-piece molding, efficient installation without leakage Unlike bulk packing that requires cutting, winding, and layer-by-layer filling, the graphite packing ring is a standard finished annular ring with precise dimensions. It requires no processing and can be directly slipped on for installation. The filling is uniform and the force is consistent, with no gaps or offsets, providing sealing consistency far superior to manually installed packing. . Low fugitive emissions, long service life, and reduced maintenance costs The high sealing density achieves low fugitive emission sealing, meeting industrial environmental protection leakage standards. It has excellent anti-, anti-fatigue, and high-temperature creep resistance. Its service life is 3 to 5 times that of ordinary packing, significantly reducing the frequency of downtime for maintenance replacement, thereby lowering factory operation and maintenance costs.

III. Mainstream Classifications and Precision Selection Guide The core selection criteria for graphite packing rings are structure, material, operating pressure, and temperature. The mainstream market is divided into three major categories, which cannot be used interchangeably under different operating conditions: 1. Pure Graphite Packing Rings (Standard Type) Without metal, purely flexible graphite compression-molded, featuring a soft texture, excellent resilience, and good self-lubrication. Suitable for medium-to-low temperature, mediumto-low pressure, and ordinary corrosive medium operating conditions. Widely used for conventional valve, water heating pump, and ordinary fluid equipment sealing, offering high cost-performance and strong versatility 2. Metal-Reinforced Graphite Packing Rings (Wire Mesh/Metal Sheet Reinforced) Embedded with 304/316L stainless steel wire mesh or metal sheets composite reinforcement, significantly improving structural strength, compression resistance, deformation resistance, and high-pressure resistance. Suitable for high-temperature and high-pressure, large pressure fluctuation, and highfrequency vibration operating conditions. It is a specialized type for thermal power, chemical industry, and high-pressure steam equipment. 3. Split/Slanted-Cut Graphite Packing Rings Ad a 45° slanted-cut split design, allowing direct installation and removal without dismantling the equipment shaft end. Suitable for large equipment, pumps and valves where dismantling is inconvenient, online maintenance scenarios, offering convenient maintenance without affecting the equipment structure. Based on cross-section, they can be divided into square, wedge, and V-shaped. Among, the wedge and V-shaped types have stronger compression resistance and are specifically designed for ultra-high-pressure sealing conditions.

IV. Full-Coverage Application Scenarios Thermal Power Industry Boiler valves, high-temperature steam valve stems, thermal network pump shafts, generator set packing box sealing; Petrochemical Industry: Chemical reactor valves, high-pressure pumps, organic solvent transport, corrosive medium shaft seals; Metallurgical Thermal Industry: High-temperature furnace-matched valves, hot oil circulation pumps, high-pressure heat exchange equipment dynamic seals; General Industry Water supply and drainage pumps, air compressors, compressors, control valves, globe valves, ball valve stem seals; Cryogenic and Clean Industry: Cryogenic equipment, low-temperature pumps and valves, impurity-free clean medium sealing scenarios.

V. Graphite Packing Rings VS Graphite Gland Packing: Core Differences Many maintenance personnel easily confuse the two. A sentence to distinguish them accurately: Choose molded packing rings for convenience, stability, and shaft protection; choose bulk gland packing for simple, low-pressure, and temporary sealing. 1 Structural Differences: Graphite packing rings are integrally molded with standard dimensions and uniform density; gland packing consists of braided flexible strips, and manual installation results in uneven tightness. 2 Sealing Effect: Packing rings fit tightly with no gaps and low leakage; gland packing is prone to uneven installation, and long-term operation easily leads to loosening and leakage. 3 Shaft Protection: Packing rings provide uniform lubrication and do not damage the shaft; ordinary gland packing easily traps impurities, wearing down the shaft over long-term operation. 4. Installation Efficiency Packing rings are directly fitted for quick installation; gland packing requires cutting, winding, and layer-by-layer compaction, which is time-consuming and labor-intensive. 5 Service Life: Packing rings resist high-temperature creep and are not prone to loosening, offering a longer lifespan; gland packing ages easily and its compaction degree decays rapidly.

VI. Standards and Common Misconceptions 1. Standard Installation Key Points Clean impurities, old packing residue, and rust burrs from the shaft surface inside the stuffing box; select the specification based on the shaft diameter, and strictly prohibit forcing mismatched sizes; when installing multiple rings, stagger the cut joints to avoid creating a direct through-gap; tighten the gland in multiple even steps with moderate force to ensure sealing without jamming the equipment's operation. 2. Common Fatal Misconceptions Misconception 1: Mixing up temperature pressure limits: Pure graphite models cannot be used in ultra-high pressure or continuous high-temperature oxidation conditions as they easily deform and fail; metal-reinforced models must be chosen for highpressure scenarios. Misconception 2: Aligning ring cut joints: Aligning the cut joints creates a leakage path, directly leading to sealing failure; they must be installed a staggered manner. Misconception 3: Over-tightening: Excessive tightening increases frictional resistance, wears the shaft, and increases equipment load; moderate tightening is sufficient to zero leakage. Misconception 4: Reusing old rings: Packing rings removed after use have already undergone pressure deformation and lost their rebound capability; reinstallation will inevitably cause leakage and new rings must be used.

VII. Summary With core advantages of high-temperature and high-pressure resistance, corrosion resistance, self-lubrication for shaft protection easy installation, low emission, and long service life, graphite packing rings completely compensate for the sealing shortcomings of traditional bulk gland packing, becoming the upgraded preferred choice for dynamic sealing in pump and valve stuffing boxes. Whether for high-temperature steam in power plants, corrosive media in chemical industries, or conventional sealing in general equipment, accurately matching pure graphite, metalreinforced, or custom-cut graphite packing rings and following standardized installation and usage can effectively solve industry problems such as valve stem and pump shaft leakage, shaft wear, and frequent maintenance. They the high cost-performance and high-stability core sealing components for industrial dynamic sealing scenarios.
