Industrial high-pressure sealing

In harsh industrial scenarios such as petrochemicals, electric power, high-pressure pipelines, and pressure vessels, ordinary rubber gaskets, PTFE gaskets and composite gaskets often struggle to withstand complex working conditions involving high temperatures, high pressures, and temperature fluctuations, making them highly susceptible to aging, deformation, and leakage. In contrast as a high-end metal hard seal, the metal ring joint gasket (octagonal gasket), with its stable sealing performance and extremely strong pressure resistance and high-temperature resistance, has the core preferred choice for high-pressure flange sealing and a key component for long-term leak prevention in heavy industrial equipment. Today, we will take you through a comprehensive understanding of "hardcore" high-pressure industrial seal.

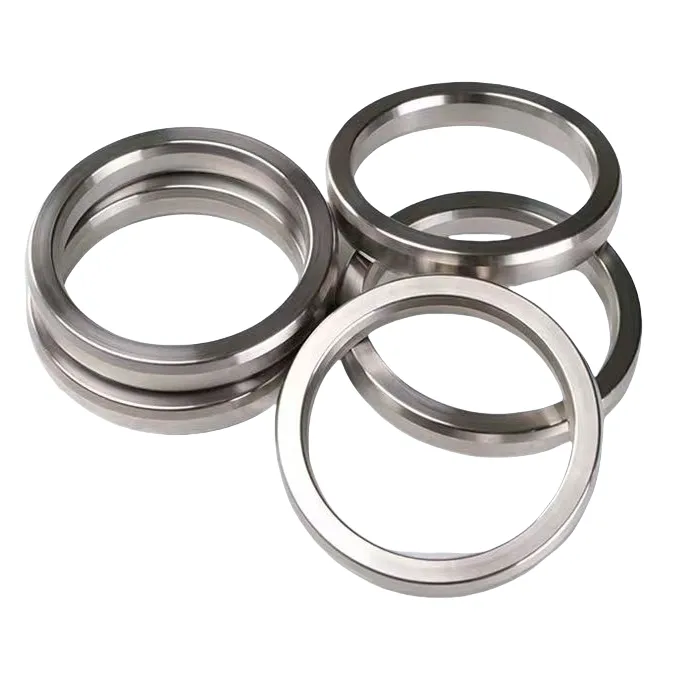

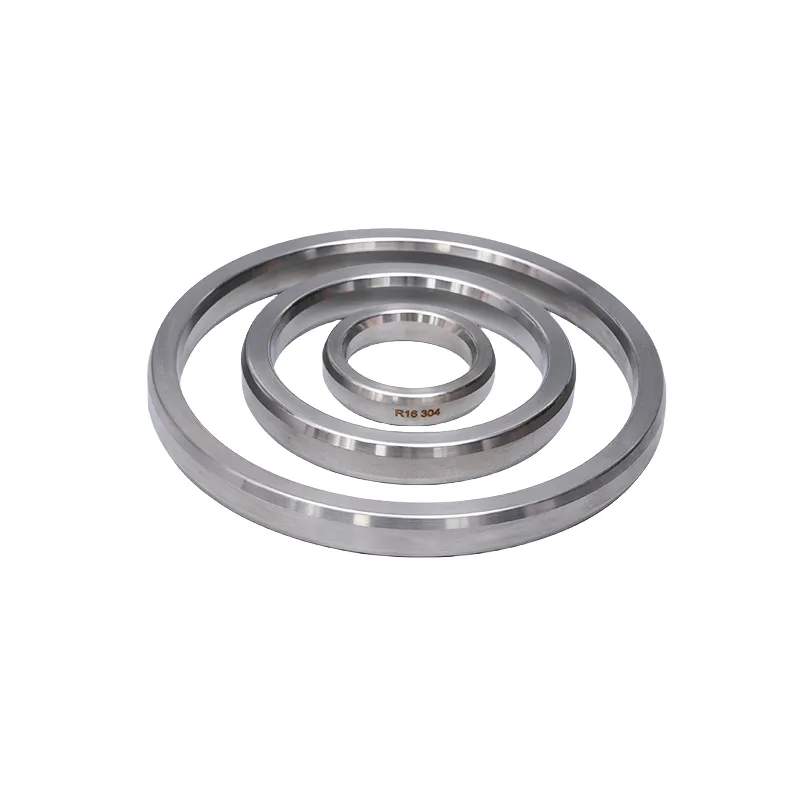

 I. What is a metal ring joint gasket? The metal ring joint gasket, also known as an octagonal metal ring or R-type octagonal gasket, belongs to the national standard metal ring-shaped sealing gasket category, strictly manufactured in accordance with industry standards such as API 6A, ASME16.20, and HG/T20633. It is named after its regular octagonal cross-section. Made from a single solid piece of metal forging, precision machining, and heat treatment processes, it is a pure metal integral rigid seal with no splicing and no filler. It is specifically designed for high-pressure trapezoidal flanges. Relying on the precise fit between its octagonal cross-section and the flange's trapezoidal groove, it achieves a tight metal-to-metal bite through bolt pretightening pressure. Its unique semi-self-tightening sealing structure ensures that the higher the equipment pressure, the tighter the gasket fits, completely solving the problem of medium leakage in-pressure working conditions. It is a dedicated accessory for high-pressure equipment sealing.

II. Core Structural Advantages of Metal Octagonal Gaskets, Crushing Ordinary Sealing Gaskets Compared conventional sealing components such as spiral wound gaskets, graphite composite gaskets, and oval gaskets, the structural design of metal octagonal gaskets is better suited for severe high-pressure operating conditions, outstanding advantages: 1. Integrated Solid Structure, Zero Deformation and Damage Forged and machined from a single solid metal piece without layers or loose materials, it eliminates the defects of sealing materials prone to compression, cracking, and aging. Under high-pressure conditions of tens of megapascals and high temperatures above 400°C, it will not from collapse, extrusion, or cracking, providing maximum structural stability. 2. Semi-Self-Tightening Seal, No Leakage Under Fluctuating Conditions Unlike ordinary gaskets rely solely on preload for sealing, octagonal gaskets possess a unique high-pressure self-tightening effect. The greater the internal medium pressure of the equipment, the tighter the between the gasket and the flange trapezoidal groove, resulting in more stable sealing performance. It perfectly adapts to industrial scenarios with frequent temperature and pressure fluctuations, eliminating intermittent leakage. 3 Uniform Double-Sided Fit, Extremely High Sealing Precision The symmetrical octagonal cross-section design ensures flat and uniform contact surfaces on both sides, allowing for an all- fit with the flange trapezoidal groove, ensuring balanced force distribution and zero-dead-angle sealing. It effectively compensates for slight flange deformations to achieve zero-leakage sealing, making it for industrial equipment with high-precision and high-sealing requirements. 4. Strong Durability, No Frequent Replacement Needed The pure metal material is resistant to aging, creep and erosion, and is unfazed by high-temperature oxidation or medium corrosion. It will not loosen or fail during long-term operation, with a service life far exceeding that of sealing gaskets, significantly reducing the costs of equipment downtime, maintenance, and part replacement.

 III. Mainstream Material Classification and Precise Selection Guide The material of a metal oct gasket directly determines its temperature, pressure, and corrosion resistance. Different materials are suitable for different operating conditions; precise selection is essential to avoid sealing failure. Mainstream materials are divided into three: 1. 10# Carbon Steel / 20# Steel (Economical General-Purpose Type) High cost-performance ratio, moderate hardness, and stable performance, suitable for conventional media such as non-corrosive substances, fresh water, ordinary steam, and air. It is applicable to medium-to-high pressure ambient temperature, ordinary thermal pipelines, and low-pressure pressure vessels, making it the mainstream choice for civil industry and conventional engineering. 2. 304/316L Stainless (Industrial Corrosion-Resistant Popular Type) 304 stainless steel is resistant to mild corrosion, high temperatures, and oxidation, suitable for steam, hot oil, and weak/alkali media; 316L stainless steel offers upgraded corrosion resistance, capable of withstanding erosion from weak acids, weak alkalis, seawater, and organic solvents. is widely used in chemical engineering, shipbuilding, oil refining, and environmental desulfurization, adapting to most industrial high-pressure scenarios. 3. Special Alloys (Dedicated to HighEnd Severe Operating Conditions) Including 321 stainless steel, Inconel, Monel, and Hastelloy, these offer top-tier high-temperature, corrosion, creep resistance. They are suitable for extremely severe scenarios such as nuclear power, military industry, high-end chemical engineering, and high-pressure oil and gas wellheads, which involve ultra-high temperatures, strong corrosion, and high pressure.

IV. Core Application Scenarios: Choose the Right One for the Right Working Conditions Metal octagonal are primarily designed for high-temperature, high-pressure, highly fluctuating working conditions, and scenarios with high sealing requirements. They are indispensable industrial components that low-pressure gaskets cannot replace Their core application fields are as follows: - Oil and Gas Industry: Wellhead equipment, Christmas trees, high-pressure gas pipelines, and flange sealing for high-pressure equipment refining and chemical industries, resisting high-pressure oil and gas erosion and leakage. - Power and Thermal Industry: Power plant boilers, steam turbines, high-pressure steam pipelines and heat exchange pressure vessels, suitable for high-temperature, high-pressure, and frequently starting/stopping working conditions. - Chemical and Coal Chemical Industry: Reaction vessels, high- reactors, distillation towers, and high-pressure pipelines for acid and alkali transport, suitable for corrosive media and high-pressure environments. - Shipbuilding and Heavy Industry: Ship high- pipelines, hydraulic systems, and offshore platform equipment, resistant to seawater corrosion and working condition vibrations. - General High-Pressure Equipment: Various high-pressure valves, high-pressure, and trapezoidal groove flange connection equipment, serving as standardized components for industrial high-pressure sealing. Applicable pressure range: 2.0MPa–42.0, making it the preferred gasket for medium-high pressure and ultra-high pressure flange sealing.

V. Octagonal Gasket vs. Oval Gasket: Core Differences at a Many people easily confuse octagonal gaskets with oval gaskets. Although both are R-type metal ring gaskets and fit trapezoidal groove flanges, their suitability for different working conditions differs: Metal Octagonal Gasket: Surface contact sealing, stronger support, better deformation resistance, superior pressure resistance, and stability. It is suitable for working conditions with large pressure fluctuations high temperature and pressure, and long-term continuous operation. It is easy to disassemble and has better reusability, making it the mainstream choice for current industrial high-pressure scenarios.Metal Oval Gasket: Line contact sealing, better toughness, suitable for constant working conditions with stable pressure and small temperature changes. It is mostly used for old equipment and high-pressure pipelines fixed parameters.

VI. Key Installation and Usage Precautions No matter how good the gasket is, improper installation will still lead to leakage. Keep these 3 key points in during daily use: 1. Clean the Flange Groove: Thoroughly clean impurities, rust, and scratches from the trapezoidal groove of the flange before installation to ensure the contact is flat and clean, avoiding leakage points caused by sealing gaps. 2. Tighten Diagonally and Evenly: Bolts must be tightened diagonally, in stages, and evenly Do not lock one side all at once to prevent uneven force distribution, displacement, or deformation of the gasket. 3. Replace Based on Working Conditions: For equipment with high, high pressure, and frequent starting/stopping, regular inspection and replacement are recommended. For highly corrosive working conditions, prioritize using 316L or higher corrosion-resistant materials prevent corrosion failure.

VII. Summary With its core advantages of solid metal structure, self-tightening seal, high-temperature and high-pressure resistance, corrosion resistance, wide adaptability to working conditions, the metal octagonal gasket firmly occupies a core position in industrial high-pressure sealing. It is not just an ordinary replacement gasket, but a necessary component high-temperature, high-pressure, fluctuating working conditions, and high sealing requirement scenarios. It can fundamentally solve problems such as equipment leakage, downtime for repairs, and safety hazards, the stable operation of industrial equipment. There is no need to blindly follow trends when selecting for working conditions. Choose flexible gaskets for low-pressure and normal temperature. For high-, high-pressure, and long-term sealing, choose the metal octagonal gasket for precise adaptation, durability, and peace of mind
